CQ-350 Forming Punching & Cutting machine

ID:CQ-350

Parameter

Application

DETAILED INFORMATION





Product Features:

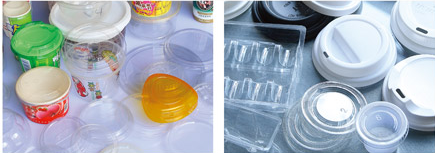

This machine is special designed for automatic forming, hole punching, cutting plastic sheet such as PVC, PS and PET. Machine’s formed product is cup cover, tray and another container. Products are widely used in Food, Medical, Daily use chemical, Metal and ect., industry.
This machine’s operation is simple and convenient, low power consumption, automatic counting.
Machine working flows: This machine fully-automatic running.
Heat forming → Hole punching → Cutting → Product discharging
Plastic sheet materials：PVC，PS，PET



Main technical data:








Cutting Time



15-35times/min



Power Supply



380V/220V  50Hz



Feed Distance Range



40-120mm



Max Forming Area



350mm×120mm



Max Forming Depth

50mm



Upper Forming Heating Power



2.0kw



Under Forming Heating Power



2.0kw



Motor Power



1.5kw



Air Pump Pressure



0.4-0.6Mpa



Air Pump Volume Flow



≧0.36³/min



Sheet(Thickness x Width)



0.1-0.6mm×350mm



Dimensions(L x W x H)



2650mm×900mm×1700mm



Weight



1200kg




All the information is for reference only. The products are subjected to change without notice.
